High-efficiency Vertical Form Fill Seal (VFFS) systems engineered for automated forming, dosing, and sealing of flexible pouches.
VFFS Packaging Technology
Precision Vertical Form Fill Seal (VFFS) Systems
Built for demanding commercial output, Spartan Machine Co., Ltd. presents the VFFS machine line (Models VFFS-220 / VFFS-320 / VFFS-420). Designed to convert rollstock film into complete pouches, dose your exact product, and securely seal at speeds up to 70 bags per minute.
Performance Metrics
Engineered for High Throughput & Minimal Waste
Our vertical packing machines integrate robust food-grade stainless steel framing with intelligent Siemens automation controls. Whether packaging delicate snacks, fine powders, or viscous liquids, each cycle is calculated for thermal seal integrity and consistent fill weights.
Max Speed70 bpm
Min Bag Size45 × 20 mm
Max Bag Size280 × 200 mm
Standard Industrial Features
Heavy-duty 304 Stainless Steel Construction
Siemens PLC Controller with Touchscreen HMI
Automatic Photoelectric Eye Mark Tracking
Integrated Thermal Ribbon Date Coding
Recipe Storage Memory for 20 Product Types
Safety Interlocked Door Assemblies
Compatible with Most Laminated Roll Films
Auto-Count & Programmed Batch Stop Functions
Equipment Gallery
Commercial Machine Formats

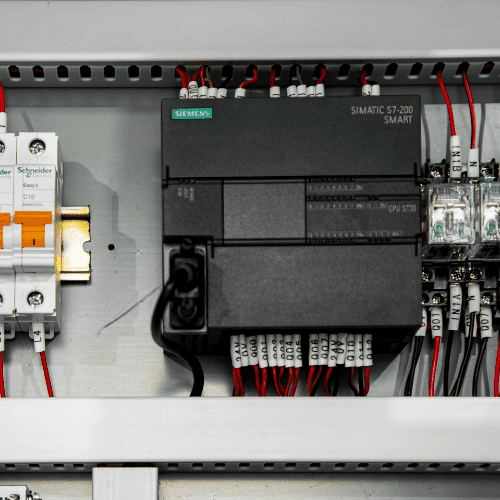

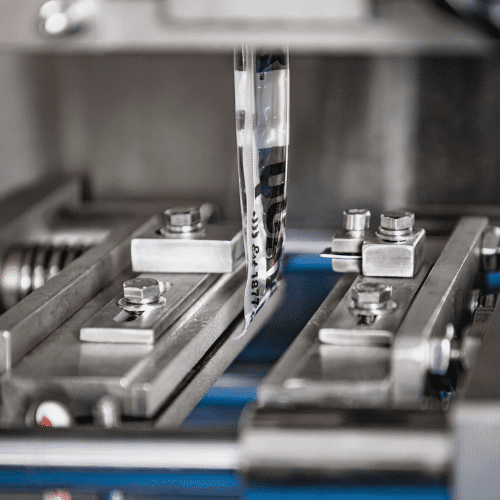

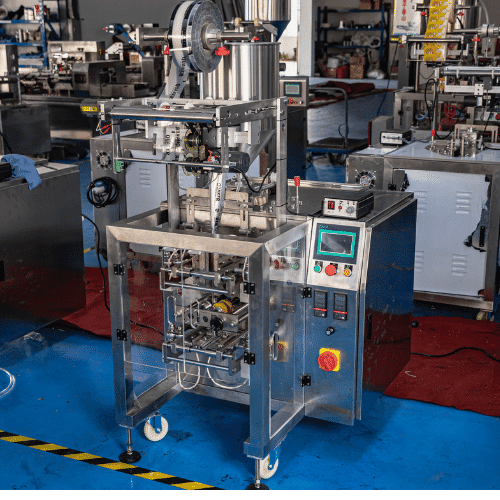

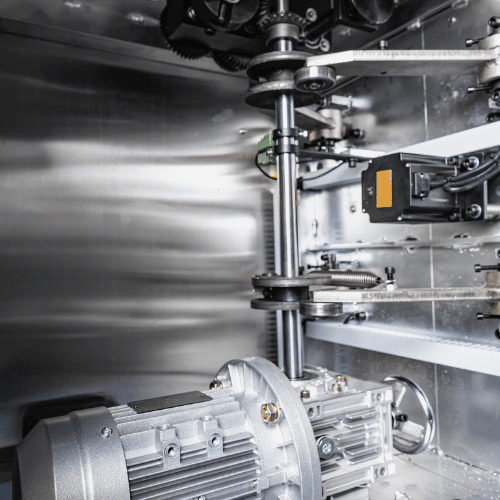

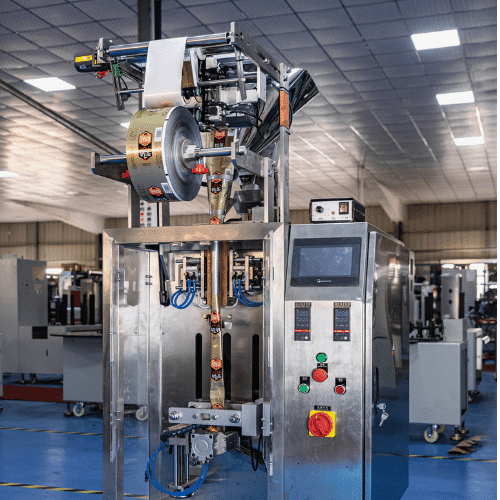

Main Frame & Control InterfaceFilm Carriage & FormerEnd-Seal Jaw MechanismPowder Dosing MountGranule Filling AssemblyLiquid Pump Interface
Dosing Versatility
Configured to Your Product Characteristics
The vertical packing machine base is modular, pairing seamlessly with specific dosing systems tailored to physical bulk density, viscosity, and flow dynamics.
Powder Products
Paired with precision servo auger fillers for non-free-flowing powders like protein powders, flour, spices, and chemical dusts. Features dust extraction ports and sealed hoppers.
Granules & Solids
Integrated with multihead combination weighers or volumetric cups for snacks, coffee beans, candies, hardware, and agricultural seeds requiring fast weight accuracy.
Liquids & Pastes
Equipped with pneumatic or servo-driven piston pumps for sauces, cosmetic lotions, fruit juices, gels, and edible oils with anti-drip nozzles.
Customized Blends
Multi-component dosing setups combining linear weighers and liquid injectors for meal kits, instant noodles with oil packets, or herbal mix dosing.
Engineering Specifications
Technical Specifications Table
Select from our standard VFFS models based on your maximum roll film width and required pouch dimensions.
Specification Parameter
VFFS-220 Model
VFFS-320 Model
VFFS-420 Model
Maximum Film Width
220 mm
320 mm
420 mm
Bag Width Range
20 to 100 mm
50 to 150 mm
60 to 200 mm
Bag Length Range
45 to 150 mm
80 to 200 mm
80 to 280 mm
Maximum Packing Speed
70 bags/min (bpm)
65 bags/min (bpm)
60 bags/min (bpm)
Film Material Compatibility
Laminated Film, Paper/PE, Aluminum Foil, Monolayer PE (Optional)
Control Architecture
Siemens Programmable Logic Controller (PLC) with Touchscreen HMI
Pneumatic Supply
0.6 MPa, 0.3 - 0.4 m³/min dry compressed air
Electrical Power Supply
220V Single Phase / 380V Three Phase, 50/60Hz, 2.2 kW - 4.5 kW
Modular Expansion
Optional System Components
Expand line capability by incorporating downstream and upstream auxiliary machinery directly into the primary VFFS control loop:
Gas Flush System (Modified Atmosphere Packaging for shelf life)
The VFFS series turns heat-sealable flexible barrier film into several common commercial bag styles:
Bag Styles
Pillow Bags, 3-Side Seal Sachets, 4-Side Seal Sachets, Gusseted Bags, and Chain Style Bags.
Substrate Materials
PET/AL/PE, PET/PE, Paper/AL/PE, Nylon/PE, and recyclable mono-polymer laminates.
Equipment In Motion
Operational Demonstrations
Observe Spartan Machine Co., Ltd. vertical packing machines running production trials across various material profiles.
Vertical Powder Packing Machine Line
Shaped Cosmetic Liquid Packaging
Liquid Sachet High-Speed Packaging
Technical Consultation
Request a Custom VFFS Project Assessment
Contact our project engineers with your product specifications, target fill weights, and pouch formats. Email us at [email protected] or launch an inquiry using the direct link below.
