Target Product Application & Dosing Integration
The VFFS machine host unrolls film, forms the pouch tube, and executes vertical/horizontal seals. Product dosing routes are engineered around your material flow characteristics to guarantee speed and seal integrity.
Snacks & Confectionery
Integrated with combination multihead weighers. Designed for fragile chips, extruded snacks, and crispy items with gentle product transfer chutes.
Nuts & Granules
Matched with volumetric cup fillers or electronic weighers. Ideal for pistachios, almonds, rice, seeds, and bulk agricultural products.
Industrial Powders
Configured with servo-driven auger fillers and dust-extraction manifolds. Handles fine flour, coffee powder, spices, and chemical powders cleanly.
Pet Food & Bulk Solids
Engineered for high-volume kibble packaging. Heavy-duty film pulling jaws handle thicker laminates and larger bag weights reliably.
Rollstock Film Pouch Format Options
Each machine forming collar is precision-machined to exact bag widths. Spartan Machine Co., Ltd. custom-builds forming assemblies for seamless format changeover.

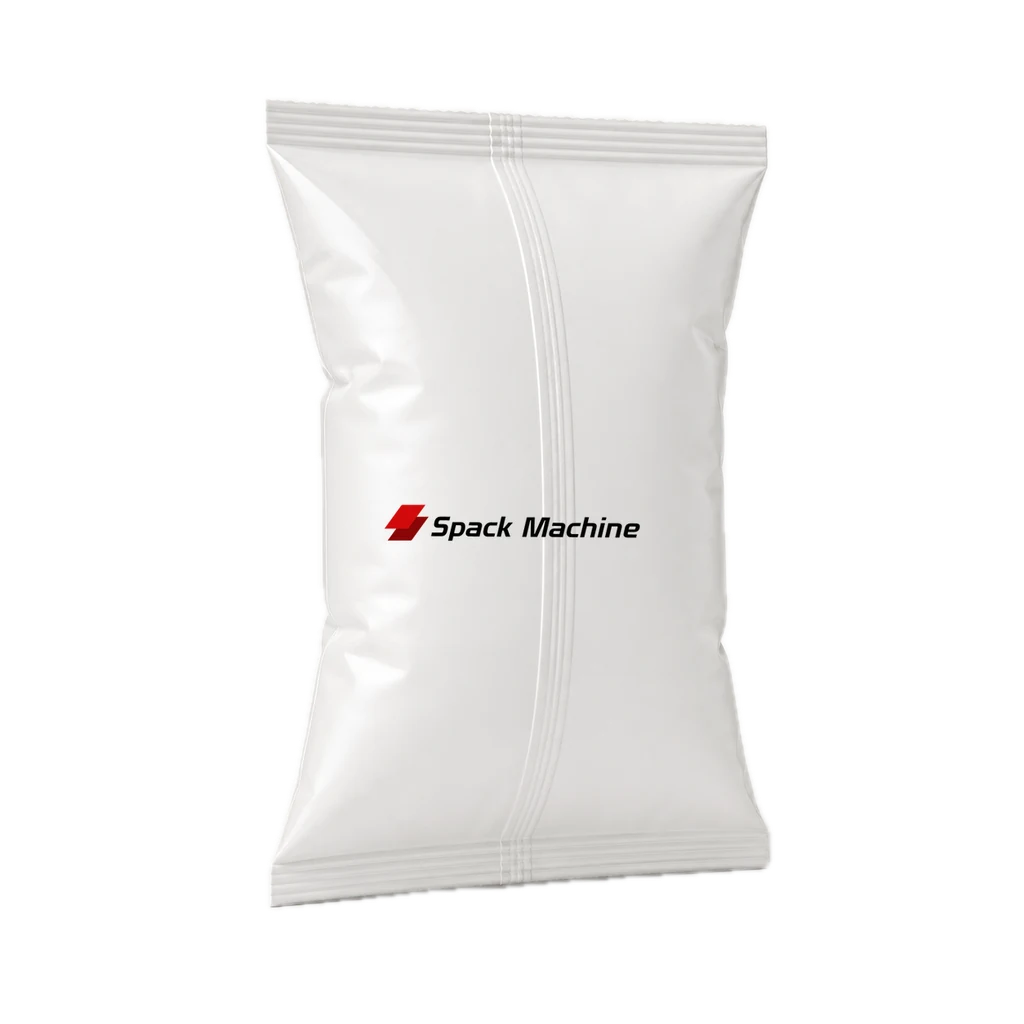

Standard Pillow Bag: Classic vertical center back seal with clean top/bottom end seals. Maximum film efficiency for retail snack foods.

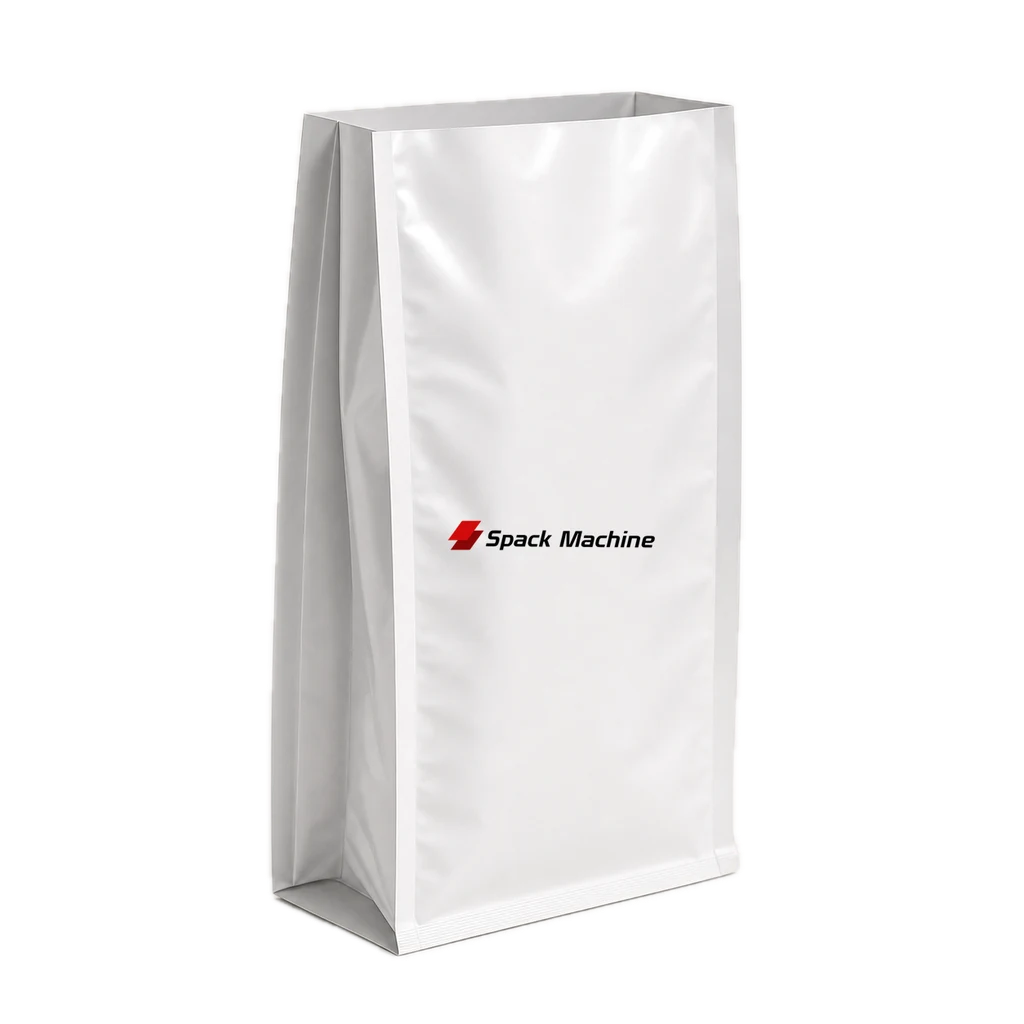

Side-Gusseted Pouch: Mechanical gusset tucking device expands bag volume for upright shelf stability and premium branding appearance.

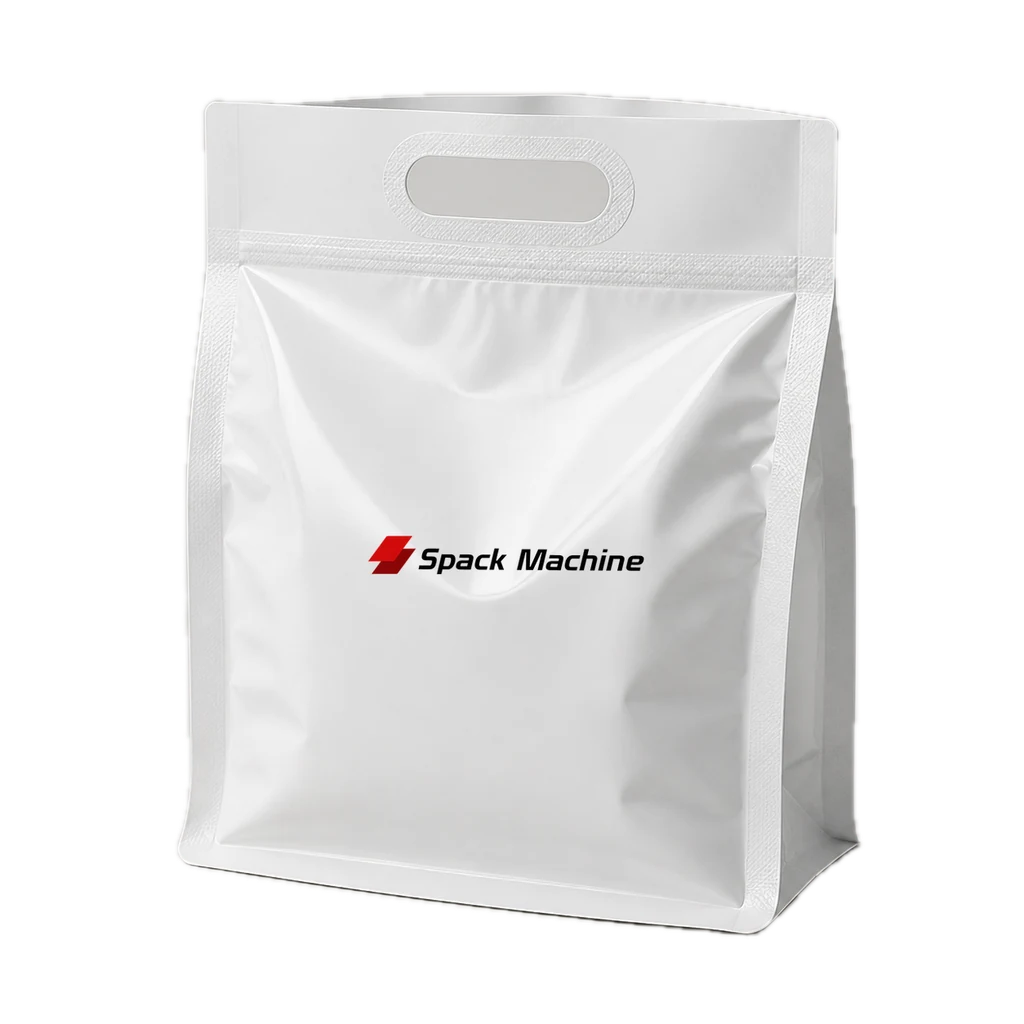

Carry-Handle Bag: Die-cut handle punch integration for larger volume snack or pet food bags requiring retail transport options.
VFFS Model Series Comparison
Screen model sizes based on maximum rollstock film width. Final line specifications are confirmed following sample testing of your film roll and bulk product density.
| Model Parameter | VFFS-320S | VFFS-420S | VFFS-620S |
|---|---|---|---|
| Max Film Width | 320 mm (12.6 in) | 420 mm (16.5 in) | 620 mm (24.4 in) |
| Pouch Width Range | 50 – 150 mm | 60 – 200 mm | 100 – 300 mm |
| Pouch Length Range | 80 – 200 mm | 80 – 300 mm | 100 – 500 mm |
| Max Rated Speed | Up to 100 bags/min | Up to 90 bags/min | Up to 60 bags/min |
| Film Material Compatibility | Laminated film, BOPP/CPP, PET/AL/PE, Kraft paper laminate film | ||
| Control Platform | Siemens Industrial PLC with Touchscreen HMI and Recipe Memory | ||
Integrated Four-Stage Packaging Process
Spartan Machine Co., Ltd. provides turn-key system integration from raw material feeding through sealed pouch discharge and quality verification.
Material Infeed
Z-bucket elevators for granules or dust-sealed screw conveyors for powder product feeding.
Precision Dosing
Synchronized dosing via multihead weighers, auger screws, or piston pumps with high target accuracy.
Form, Fill & Seal
Continuous film draw, optical eye mark tracking, hot-seal jaw closure, and nitrogen gas flush injection.
Outfeed & Inspection
Take-away conveyor handling, online checkweighing, metal detection, and motorized packing tables.
Manufacturing & Overseas Technical Support
We guarantee machine performance under explicit technical terms. Every system undergoing international export passes comprehensive Factory Acceptance Testing (FAT).
12-Month Warranty
Full warranty coverage from the date of physical receipt. Replacement parts shipped promptly for minimal line downtime.
Factory Acceptance Test
Uncut video documentation of your machine running your actual film and product samples prior to dispatch approval.
Remote Engineering
Multilingual technical support via remote digital connectivity, video support, and clear operator instruction manuals.
Rigid Quality Build
Constructed with solid SUS304 stainless steel frames, premium pneumatic systems, and global standard electrical components.
Frequently Asked Questions
Clear answers regarding equipment capabilities, production output, custom options, and procurement parameters.
Can a high-speed pouch packing machine run my specific product and pack format?
Product compatibility is governed by material flow dynamics, static charge, moisture content, and film structure. Spartan Machine Co., Ltd. verifies fit using three data inputs: your product physical sample, fill weight requirement, and pouch engineering drawing before finalizing machine tooling specs.
Is the maximum rated machine speed guaranteed for my production line?
Published speed limits represent dry-cycle mechanical capacity. Actual operational throughput depends on product drop velocity, pouch length, thermal seal dwell time, and film type. Every production rate quoted by Spartan Machine Co., Ltd. explicitly states fill weight and product conditions.
How do I select between VFFS-320S, VFFS-420S, and VFFS-620S models?
Model selection is determined by maximum film roll width and pouch dimensions. The VFFS-320S handles film roll widths up to 320mm, VFFS-420S up to 420mm, and VFFS-620S up to 620mm. Send your pouch dimensions to our engineering team to calculate the appropriate forming collar size.
What parameters are excluded from standard machine quotations?
Standard unit prices exclude bulk raw material loading equipment beyond quoted infeeds, factory compressed air lines, external electrical wiring installations, rollstock packaging film, and secondary case packing machinery unless specified as line options.
How is technical service delivered after shipment overseas?
Equipment includes a 12-month limited warranty. Overseas buyers receive remote engineering diagnostics and video step-by-step guidance. Functional replacement components are supplied under warranty terms. On-site commissioning by an engineer is available upon contract agreement.
Request a Technical Proposal & Quotation
Send your product specifications, target fill weight, bag format, and required output to [email protected]. Our technical engineering team will review your application within 24 hours.
